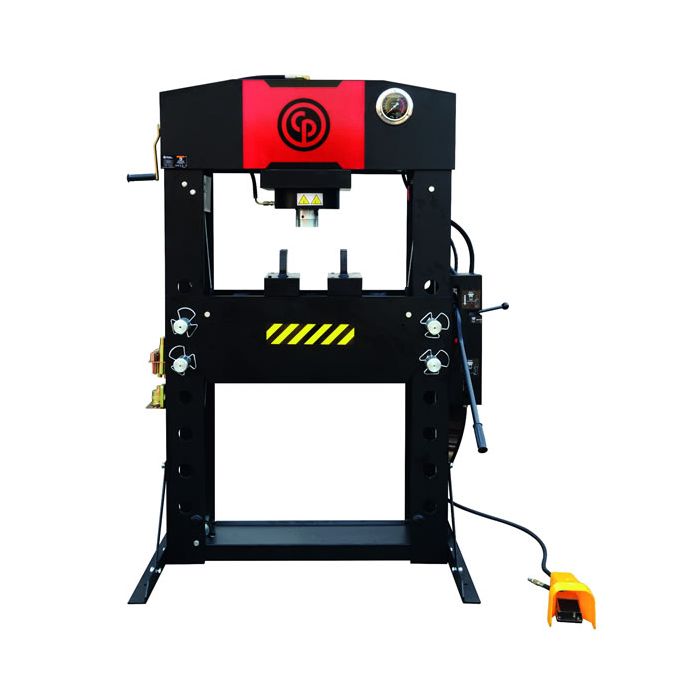

Professional & Heavy Duty Steel Framed Hydraulic Floor Press 100 Tonne Capacity by Chicago Pneumatic (Air Operated)

Benefits
Fast & Easy Work
High stability
Durable & sturdy
Precision
Easy control
Stable
Comfort
CE & ASME certified

Pneumatic pump driven by operators foot
2 holes in each foot to fix in the floor
Steel frame
2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip
Delivered with a quick chuck and 8 punches

Capacity 100 ton(s) 110.24 short ton(s)
Dimension A 1200 mm 47.3 "
Dimension B 900 mm 35.4 "
Dimension C 1830 mm 72 "
Dimension E 787 mm 30.9 "
Dimension F 300 mm 11.7 "
Dimension F1 114 mm 4.5 "
Dimension F2 814 mm 32.1 "
Dimension M 235 mm 9.2 "
Dimension R 300 mm 11.9 "
European Standards EN 693:2001 + A2:2011
Net weight 766 kg 1688.8 lb
Oil capacity 5.6 ml

8941086100
