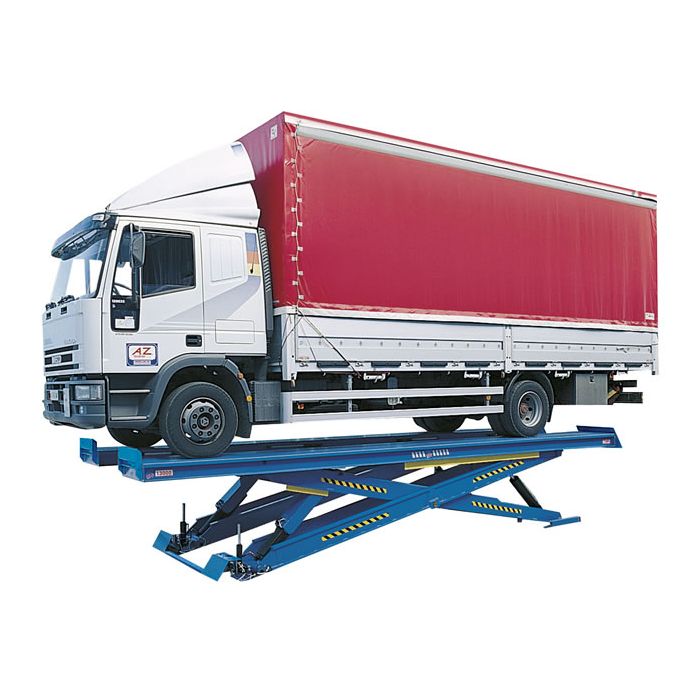

Ravaglioli - The best solution for a modern day workshop:

• Space saving when lift is raised
• Obstacle free floor space when lift is fully lowered
• No cross rails or torsion bars between lifting platforms (for maximum accessibility in the working area)
• All pivot points made with self lubricating bushings for long life
• Platform surface in ribbed anti-slip steel plate
• Audible alarm during the final lowering phase
• Hydraulic synchronisation of the platforms, independently from the load distribution, by means of:
self-regulating device & patented start-up valve
• Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is
in standing position
• Start-up pistons to minimize stress in the early stage of lifting

Specification;-

13000 Kilo Capacity
Electro Hydraulic
Air Locking Safety Mechanism
Lifting Height 1935mm
Platform Length 7000mm
Recessed or Surface Installation Available
3 Phase (400v) Power Requirement
12 Month Warranty

Options available at extra cost
Single Phase (230v) Power
Manual Or Air Operated Jacking Beams
Lighting Kit

Price does not include delivery
Prices do not include for any building or electrical works that may be required.
Our standard terms & conditions of sale apply

Installation Requirements:
A suitable electric supply with a dedicated isolator.
Our staff are unable to make a permanent connection to an isolator - this must be undertaken by a qualified electrician
A level floor
If a floor is not level we may be able to use metal packing plates - these will be supplied at extra cost
A compressed air supply for locking mechanism
Where a compressed air supply requires additional pipework this work will be undertaken at additional cost
Load Testing using a certificated vehicle.
All new lifts or re sited lifts should be load tested to comply to British Standards - we can undertake this at no extra cost only if a suitable vehicle is provided at the time of installation.

If you require additional information please do not hesitate to use the enquire button on this site and a member of our sales team will contact you to discuss your requirements in more detail


************************************************
OFFLOADING PROVISION REQUIRED FOR THIS PRODUCT
***********************************************
