2 Post Lift 5500 Kilo (Ravaglioli)
Code :
KPH370.55LIKTA
ea (Each)
Hassle Free Returns

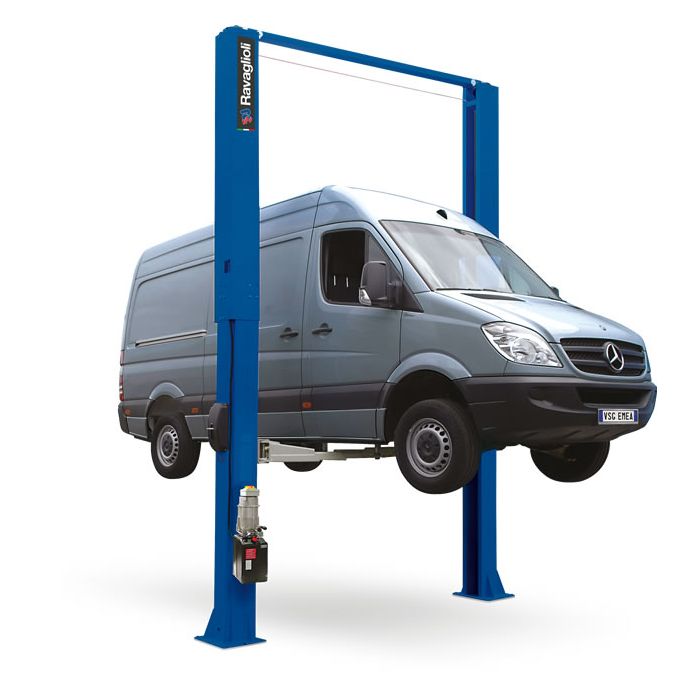

Ravaglioli 5.5 Tonne Electro Hydraulic 2 Post Lift (Extra Long Wheel based for Vans and most cars)
* Mechanical safety latch with automatic engagement ensuring maximum safety when the ramp is in standing position.
* Automatic arm locking during lifting and automatic unlocking when the arms reach the floor.
* Synchronization cables grant the levelling of the two carriages.
* Each column features a maintenance-free lifting cylinder.
* Laser cut carriages and arms - robot welding.
* Easy to adjust cables.
* Specially manufactured high efficiency motors.
* Extra resistant column design
* Exclusive 10+8 bending design to ensure max resistance to load.
Specification:
5500 Kilo Capacity
Electro Hydraulic
Mechanical Safety Mechanism
Minimum Pad Height 125mm
Lifting Height Over 2040mm
Frame Free Design
2 x 3 stage long arms and 2 x 4 stage longs arms
4900mm headroom
On install the height can be adjusted on the KPH370.55LIKTA to 4880mm.
12 Month Warranty
3 Phase (400v) Power Requirement
OPTIONS AT EXTRA COST:
Single Phase - 230v Power Requirement
High Lift Pad Kits
Service Contracts & Finance Available On This Product Please Ask For Details...
Price does not include delivery.
Prices do not include for any building or electrical works that may be required.
Our standard terms & conditions of sale apply
Installation Requirements:
A suitable electric supply with a dedicated isolator.
Our staff are unable to make a permanent connection to an isolator - this must be undertaken by a qualified electrician
A level floor
If a floor is not level we may be able to use metal packing plates - these will be supplied at extra cost
Load Testing using a certificated vehicle.
All new lifts or re sited lifts should be load tested to comply to British Standards - we can undertake this at no extra cost only if a suitable vehicle is provided at the time of installation.
If you require additional information please do not hesitate to use the enquire button on this site and a member of our sales team will contact you to discuss your requirements in more detail
* Mechanical safety latch with automatic engagement ensuring maximum safety when the ramp is in standing position.
* Automatic arm locking during lifting and automatic unlocking when the arms reach the floor.
* Synchronization cables grant the levelling of the two carriages.
* Each column features a maintenance-free lifting cylinder.
* Laser cut carriages and arms - robot welding.
* Easy to adjust cables.
* Specially manufactured high efficiency motors.
* Extra resistant column design
* Exclusive 10+8 bending design to ensure max resistance to load.
Specification:
5500 Kilo Capacity
Electro Hydraulic
Mechanical Safety Mechanism
Minimum Pad Height 125mm
Lifting Height Over 2040mm
Frame Free Design
2 x 3 stage long arms and 2 x 4 stage longs arms
4900mm headroom
On install the height can be adjusted on the KPH370.55LIKTA to 4880mm.
12 Month Warranty
3 Phase (400v) Power Requirement
OPTIONS AT EXTRA COST:
Single Phase - 230v Power Requirement
High Lift Pad Kits
Service Contracts & Finance Available On This Product Please Ask For Details...
Price does not include delivery.
Prices do not include for any building or electrical works that may be required.
Our standard terms & conditions of sale apply
Installation Requirements:
A suitable electric supply with a dedicated isolator.
Our staff are unable to make a permanent connection to an isolator - this must be undertaken by a qualified electrician
A level floor
If a floor is not level we may be able to use metal packing plates - these will be supplied at extra cost
Load Testing using a certificated vehicle.
All new lifts or re sited lifts should be load tested to comply to British Standards - we can undertake this at no extra cost only if a suitable vehicle is provided at the time of installation.
If you require additional information please do not hesitate to use the enquire button on this site and a member of our sales team will contact you to discuss your requirements in more detail
| Weight | 780.00 |
|---|
