20 Ton Hydraulic Floor Press

£571.95 £686.34
Code :
YK20F
ea (Each)
Hassle Free Returns

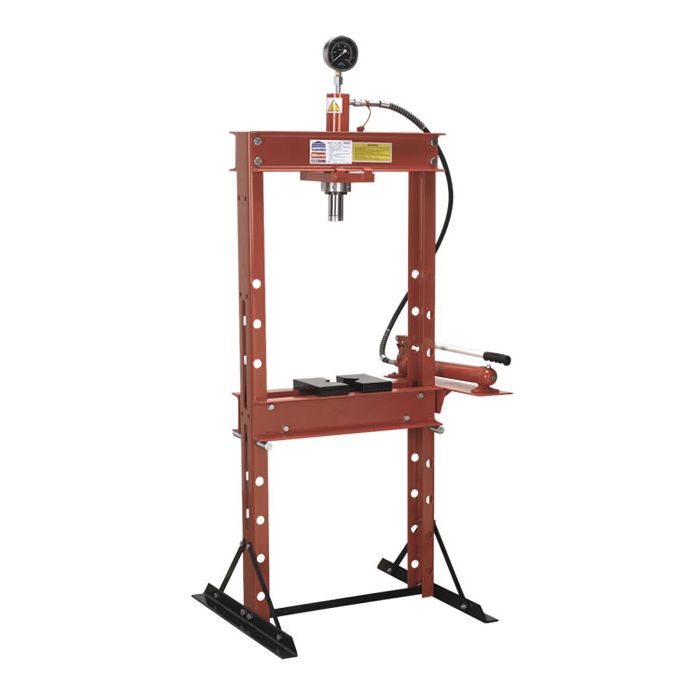

Sealey Hydraulic Press 20 tonne Floor Type

• Steel frame construction with side mounted hydraulic pump unit.
• Sliding hydraulic ram assembly giving 400mm of lateral travel for off-centre pressing applications.
• Fitted with ram pressure gauge.
• Supplied with flat pressing plate/V-blocks.

Model No: YK20F
Bench or Floor Mounting: Floor
Type: Hydraulic
Capacity: 20tonne
Ram Stroke: 185mm
Ram Ø: 50mm
Lateral Ram Travel: 400mm
Maximum Height - Ram to Table: 1025mm
Minimum Height - Ram to Table: 65mm
Table Aperture: 105mm
Working Table Depth: 205mm
Working Table Width: 550mm
Overall Height: 1810mm
Gauge Included: Yes
Working Pressure: -
Air Consumption: -
Weight: 94kg
Safety Guard (Optional): -
More Information
Weight 98.00
  •


                  Instructions #1





  •


                  Parts list #1
