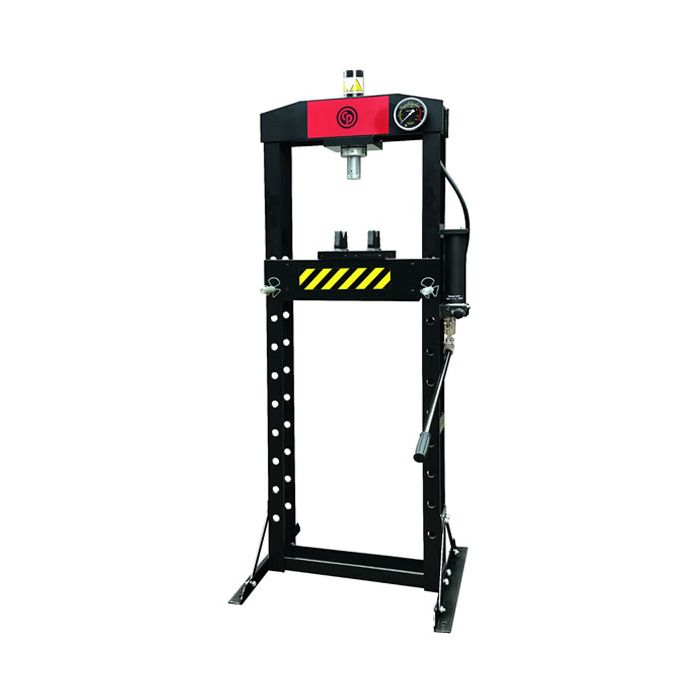

Professional & Heavy Duty Steel Framed Hydraulic Floor Press 20 Tonne Capacity

2 holes in each foot to fix in the floor
Steel frame
2 step stroke system -> Closed: Full stroke for quick approach. Open: Small stroke for fine tuning of the load
Large gauge measuring short and metric tons
Delivered with 2 V blocks
Easy to use handle with rubber grip
Delivered with a quick chuck and 8 punches


Capacity 20 ton(s) 22.05 short ton(s)
Dimension A 740 mm 29.1 "
Dimension B 700 mm 27.6 "
Dimension C 1772 mm 69.8 "
Dimension E 510 mm 20.1 "
Dimension F 132 mm 5.2 "
Dimension F1 185 mm 7.3 "
Dimension F2 1175 mm 46.3 "
Dimension R 186 mm 7.3 "
European Standards EN 693:2001 + A1 + A2
Length 231.5 mm 105 "
Net weight 105 kg 231.5 lb
Oil capacity 0.95 ml
