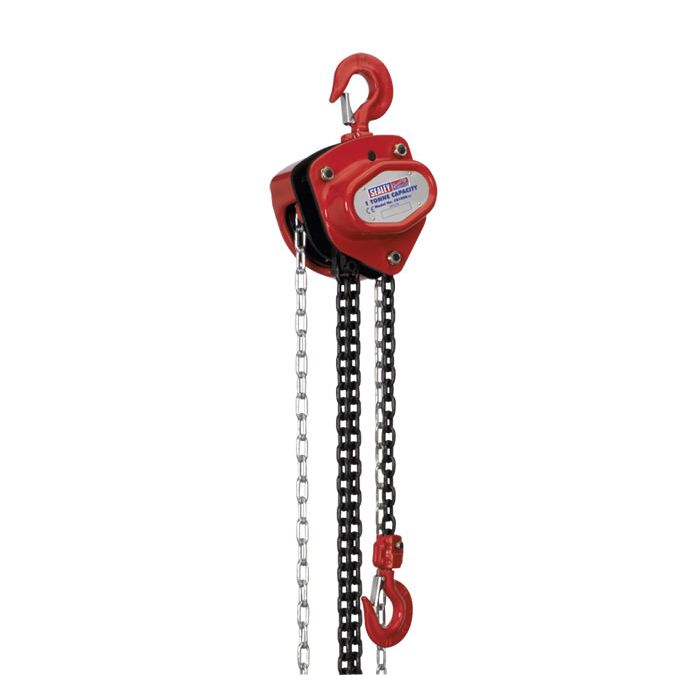

Chain Block 1tonne 2.5mtr

• Fitted with heat treated and ground, triple-spur geared shaft and pinion.
• Also includes mechanical load brake for extra safety.
• All chains are manufactured from hardened alloy material and load hooks feature safety latches.
• Compact gear housing allows use where headroom is limited.

Safe Working Load: 1000kg
Test Load: 1500kg
Standard Lift: 2.5mtr
Load Chain Diameter: Ø6mm
Pulling Effort: 31.5kgf
Head Room: 317mm
Overall Width: 140mm
Overall Depth: 158mm
Hook Aperture: 23mm
Maximum Hook Capacity Ø: 40mm
Weight: 12kg
