Ravaglioli - The best solution for a modern day workshop:

New Range of Commercial Scissor Lifts from Ravaglioli

Featuring:-

• No cross rails or torsion bars between lifting platforms. Maximum accessibility in the working area.
• Mechanical locking device with automatic engagement and pneumatic release, ensuring maximum safety when lift is
in standing position.
• All pivot points made with self lubricating bushings for long life.
• Platform surface in ribbed anti-slip steel plate.
• Audible alarm during the final lowering phase

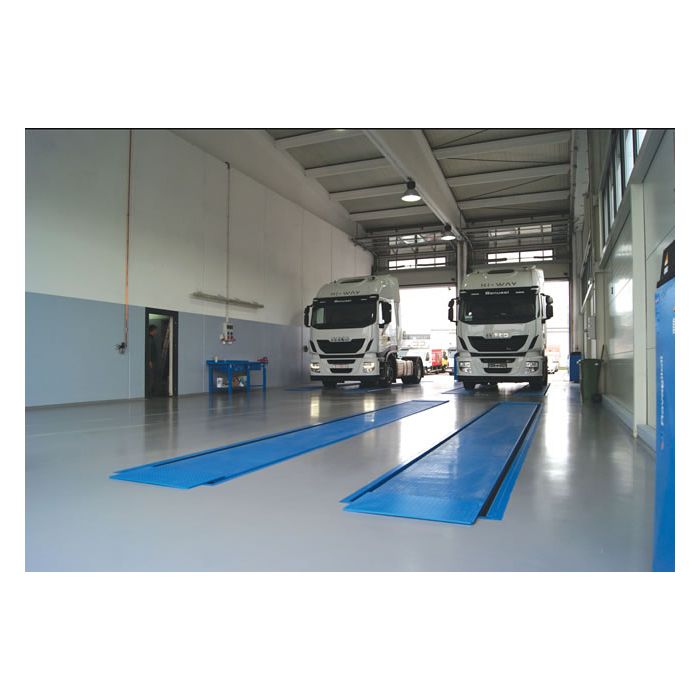

• Two lifts can be purchased and joined together suitable for extra long vehicles. *See Image

Recessed or Surface Installation Available offering the following advantages
• Space saving when lift is raised
• Obstacle free floor space when lift is fully lowered.

Specification;-
35000 Kilo Capacity
Electro Hydraulic
Air Locking Safety Mechanism
Lifting Height 2110mm (If recessed 1750mm)
Platform Length Available in 9000mm & 10,000mm & 13,000mm
3 Phase (400v) Power Requirement
12 Month Warranty

** Please Note This Lift Requires Provision Of A Compressed Air Supply **

Options available at extra cost
Single Phase (230v) Power
Manual Or Air Operated Jacking Beams
Lighting Kit

Prices include for delivery to a UK mainland destination
Prices do not include for any building or electrical works that may be required.
Our standard terms & conditions of sale apply

Installation Requirements:
A suitable electric supply with a dedicated isolator.
Our staff are unable to make a permanent connection to an isolator - this must be undertaken by a qualified electrician
A level floor
If a floor is not level we may be able to use metal packing plates - these will be supplied at extra cost
A compressed air supply for locking mechanism
Where a compressed air supply requires additional pipework this work will be undertaken at additional cost
Load Testing using a certificated vehicle.
All new lifts or re sited lifts should be load tested to comply to British Standards - we can undertake this at no extra cost only if a suitable vehicle is provided at the time of installation.

If you require additional information please do not hesitate to use the enquire button on this site and a member of our sales team will contact you to discuss your requirements in more detail


************************************************
OFFLOADING PROVISION REQUIRED FOR THIS PRODUCT
************************************************
