Digital Multimeter 19 Function
£17.13
£20.56
Code :
MM19
ea (Each)
Hassle Free Returns

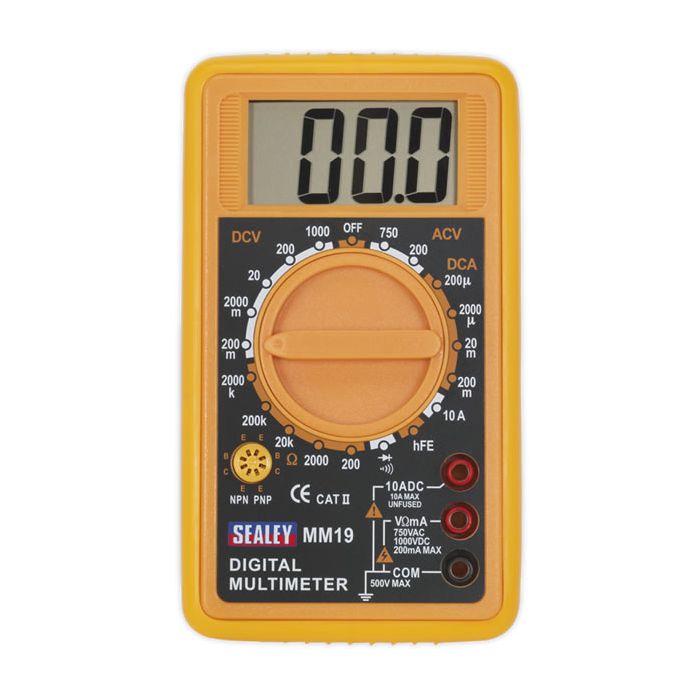

High quality general purpose multimeter with a large (25mm), clear and easy to read LCD display. Supplied with full set of leads and probes.
Measures;-
• AC and DC Volts
• DC Amps
• Ohms Resistance
• Diode/Transistor Verification Model
Voltage DC: 200mV (±0.25%), 2V, 20V, 200V (±0.5%)
Voltage AC: 200V, 750V (±1.2%)
Current DC: 200µA, 2000µA, 20mA (±1%), 200mA (±1.2%), 10A (±2%)
Resistance: 200O, 2kO, 20kO, 200kO (±0.8%), 2MO (±1%)
Continuity: n/a
Diode Test: Forward voltage drop
Transistor Test: hFE @ 10µA & 2.8Vce
Measures;-
• AC and DC Volts
• DC Amps
• Ohms Resistance
• Diode/Transistor Verification Model
Voltage DC: 200mV (±0.25%), 2V, 20V, 200V (±0.5%)
Voltage AC: 200V, 750V (±1.2%)
Current DC: 200µA, 2000µA, 20mA (±1%), 200mA (±1.2%), 10A (±2%)
Resistance: 200O, 2kO, 20kO, 200kO (±0.8%), 2MO (±1%)
Continuity: n/a
Diode Test: Forward voltage drop
Transistor Test: hFE @ 10µA & 2.8Vce
| Weight | 0.27 |
|---|
