Insulated Rubber Safety Mat 1 x 1m Class 0 1,000v Working / 10,000v Tested

Our Class 0 electrical matting is the ideal flooring solution for protecting against low voltages in manufacturing plants. The matting is tested in order to conform with IEC 61111:2009 European standards. Using this specification, we are able to produce thinner matting without compromising on safety.

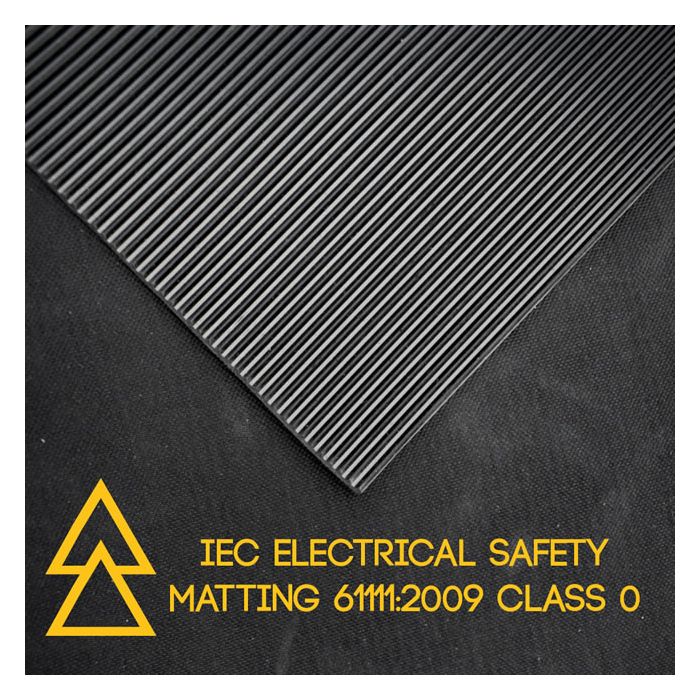

The electrical matting features a fine ribbed top surface as well as a cloth finish on the underside. These ribs serve two main purposes. First of all, the ribs greatly increase the surface area of the matting, which helps to disperse electrical discharge. Finally, the ribs improve the grip of the matting, which provides excellent anti-slip properties even when wet. The cloth underside also features the IEC 61111:2009 specification stamped at regular intervals.

Unbeatable Safety
IEC 61111: 2009 is the current UK and European specification for electrical insulation matting. The specification is crucial as it ensures that all new electrical matting is manufactured to the same criteria. It also helps to separate the electrical matting into different classes depending on the maximum voltage they can protect against. This enables you to quickly and easily select the appropriate electrical matting for your application. The electrical insulation matting classes are separated as follows:

Class 0 – Maximum Tested V: 10,000 | Proof V: 5,000 | Safe Working V: 1,000
Class 1 – Maximum Tested V: 20,000 | Proof V: 10,000 | Safe Working V: 7,500
Class 2 – Maximum Tested V: 30,000 | Proof V: 20,000 | Safe Working V: 17,000
Class 3 – Maximum Tested V: 40,000 | Proof V: 30,000 | Safe Working V: 26,500
Class 4 – Maximum Tested V: 50,000 | Proof V: 40,000 | Safe Working V: 36,000

The maximum tested voltage ensures that the electrical matting does not deteriorate when exposed to high voltages. Please note: you should not confuse this with the working voltage, which outlines the maximum voltage the mats can efficiently withstand for long periods of time.

* Safety matting fully tested to specification IEC 61111:2009
* Protects against electrical charge up to 1,000 volts
* Health & safety regulation electrical safety matting
* Good anti-slip surface even when wet
* Suitable for use with all footwear types
* Good underfoot comfort
* Regulatory branding on reverse every 1000mm
* Easy to install and remove
* Fully traceable supply
* Low maintenance

Material: Rubber elastomer
Roll length: 1m to 10m
Roll width: 1m
Thickness 3mm
Maximum tested voltage: 10,000V
Safe working voltage: 1,000V
Colour: Black (as standard)
