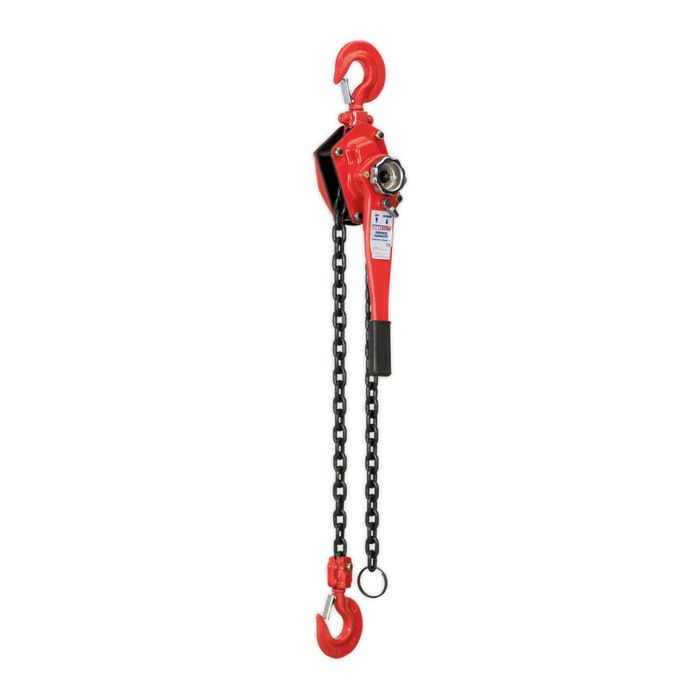

Lever Hoist Steel 3000kg

Rugged construction features drop-forged and heat treated pinion gear with totally enclosed mechanisms.
Equipped with heavy-duty brake and high quality alloy steel chain for durable and safe operation.
Free-chaining feature permits slack in the load chain to be taken up by hand before engaging the ratchet arm.

Capacity: 3000kg / 3 Tonne
Chain Falls: 1
Chain Length: 1.5m
Head Room: 400mm
Hook Aperture: 40mm
Lever Length: 410mm
Load Chain Diameter: Ø10mm
Maximum Hook Capacity Ø: 50mm
Nett Weight: 24kg
Operating Clearance: 108mm
Pull on Lever to Lift Full Load: 33kgf
Size (W x D): 180 x 200mm
Test Load: 4500kg
