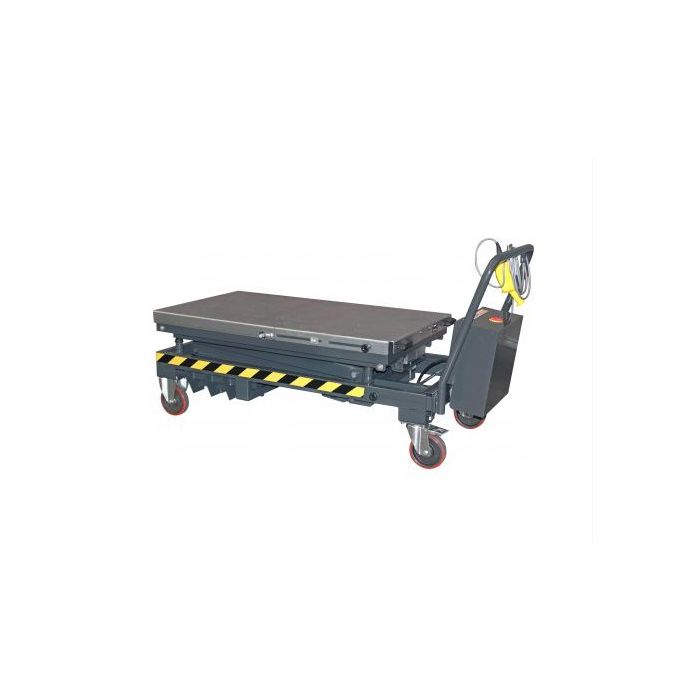

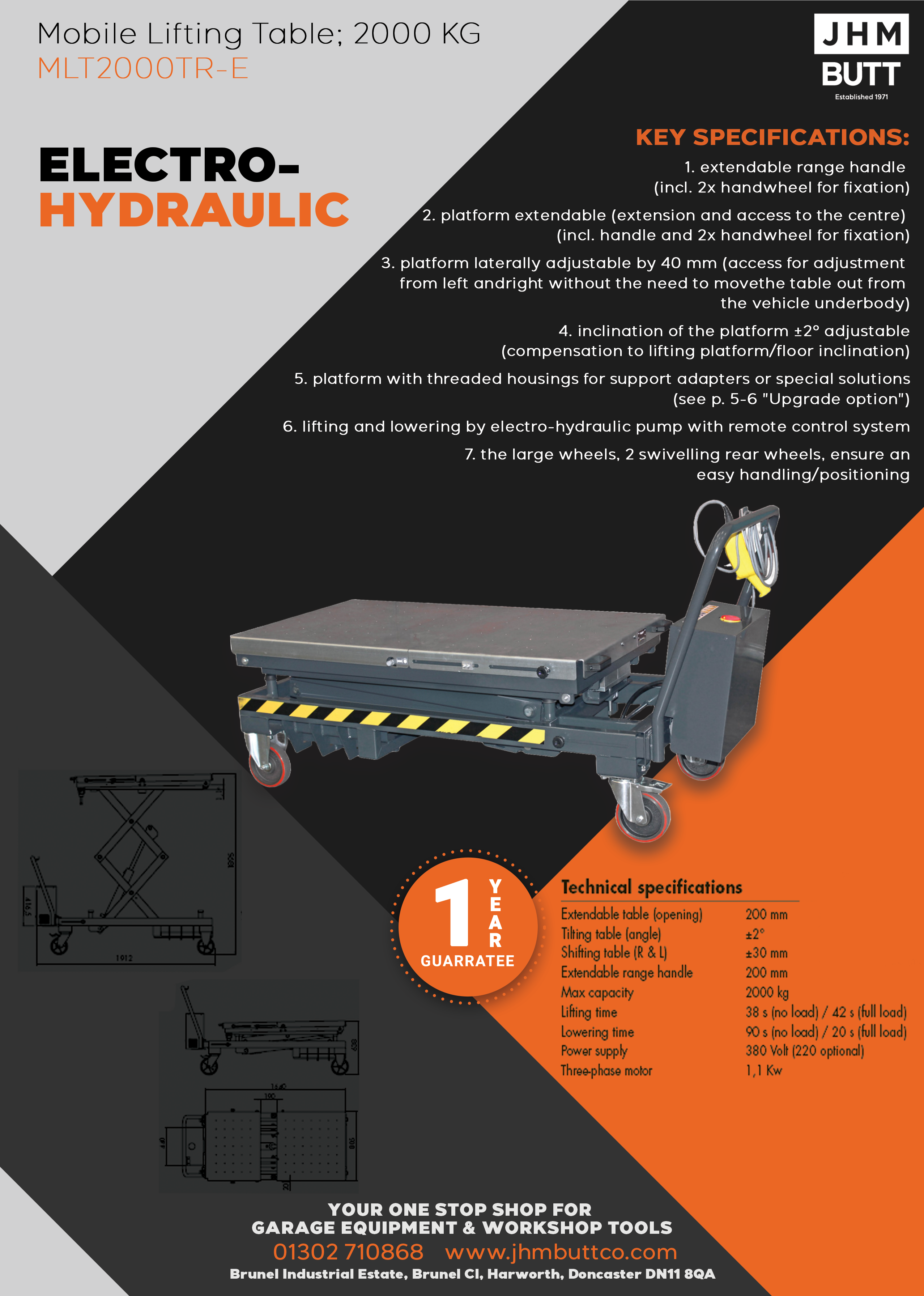

Electro Hydraulic Moblie Battery Lifting Table 2. Ton Capacity Universal table for electric car batteries; it's also perfect for lifting and moving engines, automatic gearboxes & chassis components with remote control

Features:
1. extendable range handle (incl. 2x handwheel for fixation)
2. platform extendable (extension and access to the centre) (incl. handle and 2x handwheel for fixation)
3. platform laterally adjustable by 40 mm (access for adjustment from left and right without the need to move the table out from the vehicle underbody)
4. inclination of the platform ±2° adjustable (compensation to lifting platform/floor inclination)
5. platform with threaded housings for support adapters or special solutions (see p. 5-6 "Upgrade option")
6. lifting and lowering by electro-hydraulic pump with remote control system
7. the large wheels, 2 swivelling rear wheels, ensure an easy handling/positioning



Technical specifications
Extendable table (opening) 200 mm
Tilting table (angle) ±2°
Shifting table (R & L) ±30 mm
Extendable range handle 200 mm
Fork housing incl.
Max capacity 2000 kg
Lifting time 38 s (no load) / 42 s (full load)
Lowering time 90 s (no load) / 20s (full load)
Power Supply 380V
3PH Motor 1.1KW
