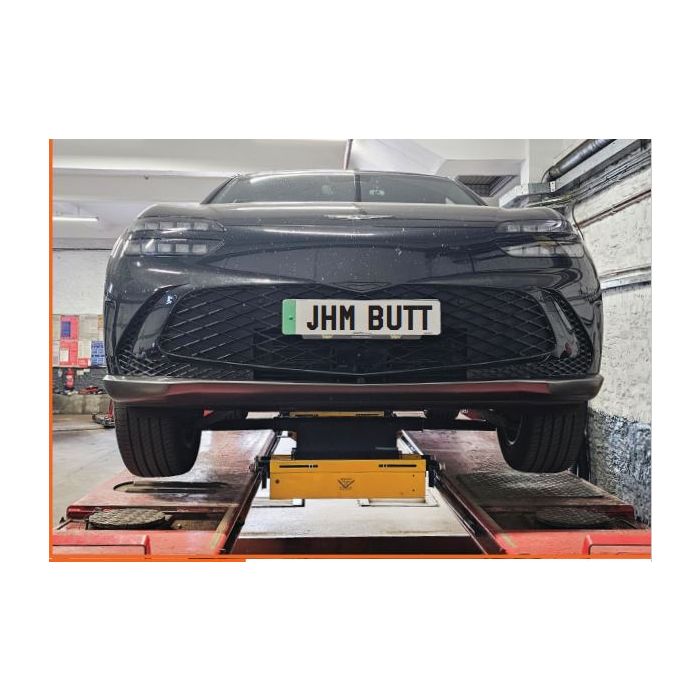

Major Lift 2800 Kilo Manual Operating Jacking Beam (Class 7 MOT)

Introducing Majorlifts new wider 2.8T Jacking Beam. The perfect solution to lift modern vehicles including EVs.

Narrow Jacking Beams to fit narrow pits and lifts (pump mounted externally)

Supplied as standard with finger guards for CE marking and complete with 1875mm double extending top beam.

Other features :
* Minimum Effort Required With Easy Roll Bearing Support Arms
* Test certificates supplied with all beams
* All equipment covered by 3 Year Warranty that can be upgraded to 5 Years
* Finger guards supplied as standard
* Approved by VOSA for Class 4 Testing.
* New style accessory kit:- 2 x adjustable lift pads, 2 x 70mm extentions, & 2 x 40mm rubber blocks.

Specifications:
Width when extended: 1875mm - 74”
Width when retracted: 790mm - 31”
Minimum width over support arms: 700mm - 27.6”
Maximum width over support arms: 1020mm - 40.5”
Closed height: 225mm - 9”
Total lift: 2260mm - 10.25”
Height above platform/floor: 75mm - 2.9” *can be set lower with special arms if required
Weight: with top beam: 114kg - 251lbs

SOME VEHICLE LIFTS, REQUIRE SPECIFIC SUPPORT ARMS WHICH CAN BE SUPPLIED AT EXTRA COST. When ordering please state model, serial number and year of lift. Please note this price is to supply only.

Major Lift Jacking Beams come with a 3 year warranty that can be upgraded to 5 Years. Download Majorlift Warranty information from our website for more information.
