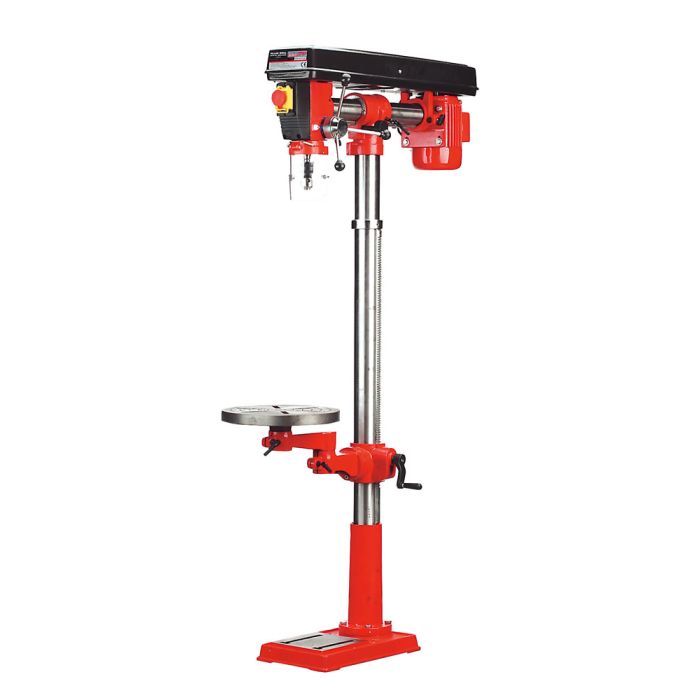

Radial Pillar Drill Floor 5-Speed 1630mm Height 550W/230V

Heavy-duty construction meets Safety of Machinery (Safety) Regulations 1992 (and amendments). Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Also available as bench mounted type - GDM790BR.

Drilling Capacity (Chuck Size): 16mm
Spindle Nose Taper: MT2
Maximum Swing: 940mm
Maximum Distance Spindle Centre to Column: 425mm
Radial Arm Travel: 315mm
Spindle Travel: 80mm
Number of Speeds: 5
Speed Range: 460-2890rpm
Working Table Surface Size: Ø310mm
Overall Base Size: 420 x 250mm
Column Diameter: 71mm
Collar Diameter: 60mm
Overall Height: 1630mm
Nominal Motor Power: 370W - 230V
Maximum Motor Power: 550W - 230V
Weight: 65kg
