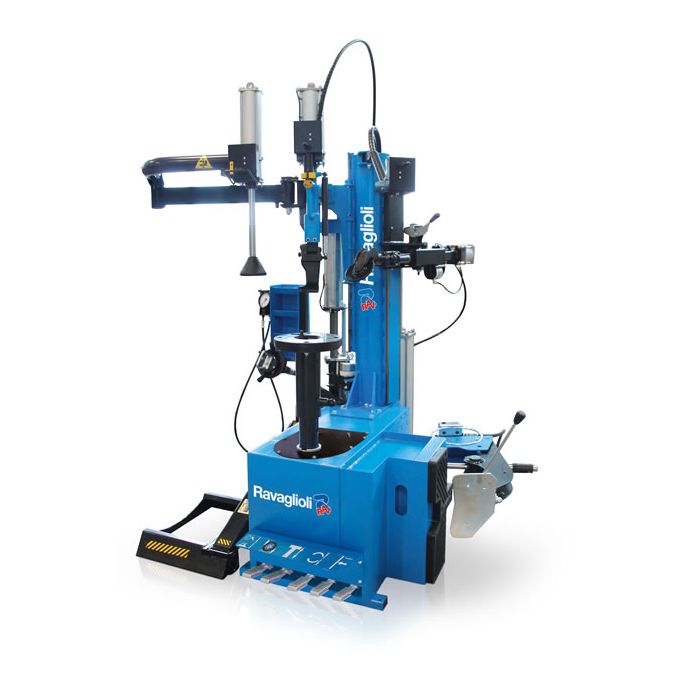

Ravaglioli Professional Leverless Tyre Changer 26" with Helper, Inflation & Wheel Lift

Features
* Easy Demounting (upper bead) - Bead demount controls: down and up and the bead is demounted
* Patented tool in plastic anti-scratch material
* Quick locking unit (standard)
* Two position locking plate for standard or reverse rims
* Space Saver - Post with vertical “space saver” movement
* Tool Memory - Rim edge “memory” controls:
* Place it first time, then it will go back to same position just pushing a pedal
* Lever for quick opening of bead breaker arm
* Roller radial position setting
* Easy Demounting (lower bead)
* Easy Bead Breaking - Roller rotation 180°
* Inflation by pedal
* Incorporated Wheel Lift
* Helper

Components to set up:
- Air Line Hose & Fittings
- Single Phase (3 point plug) / Three Phase (5 pin/4 pin plug)


Technical Data
Max torque 1200 Nm
Recommended Air Supply 8 / 10 bar
Max wheel diameter 45”/1143 mm
Max wheel width 381 mm (15”)
Handled wheels from 10”- 26”
Noise level <80db
