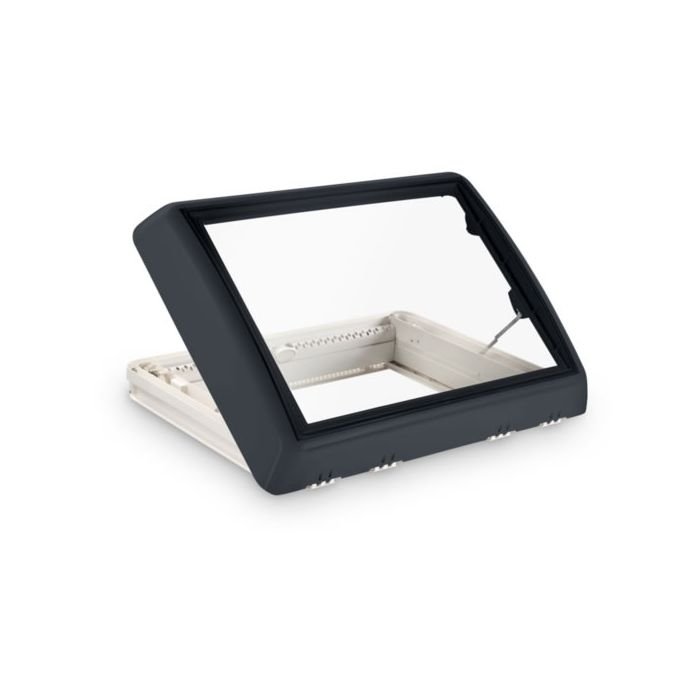

Dometic Midi Heki Style
Roof window with crank, grey, with forced ventilation, 700 x 500 mm
Open up your vehicle to fresh air and light! This upgraded version of the Midi Heki Style roof light has improved safety features, aerodynamics, appearance and maintenance. With well-proven benefits such as the darkening blind and fly screen, as well as hassle-free cleaning, it ensures comfort and convenience while you're on the road.
art.nr : 9104121201 (ZUB14912503)
Features
Specifications
Improved aerodynamics
IMPROVED AERODYNAMICS
Noise level is reduced by up to 20 % (3 dB)

KEEP IT CLEAN
New shape means less dirt between roof and dome

Re-designed frame
RE-DESIGNED FRAME
Hinge and lock integrated into frame for improved safety and mechanical reliability

Dometic Midi Heki Style
...AND MORE
Separately adjustable darkening and fly screens
Well insulated dome with double acrylic glazing
Improved aerodynamics reduce by 20 %
Hinge and lock integrated into frame for improved safety and mechanical reliability
Variably adjustable opening positions
With or without forced ventilation
Modern design for stylish interior and exterior appearance
ENJOY NATURAL LIGHT AND FRESH AIR
This Dometic Midi Heki Style is an advanced version of Dometic's mid-sized roof windows. It features a newly designed dome with double acrylic glazing for enhanced insulation and better visual integration. With its improved design, the Midi Heki Style is both easier to clean and generates up to 20 % (3 dB) less noise thanks to improved aerodynamics. An inner frame with separately adjustable darkening blind and fly screen conveniently keep sunlight and insects out of the vehicle. This advanced Midi Heki Style is available with crank or lever operation, with or without forced ventilation.

SPECIFICATIONS
GENERAL
SKU number 9104121201
Model Midi Heki Style GD Crank Version
Model on label Midi Heki Style
Scope of delivery Midi Heki Style with manual in box
Product Description Roof window with crank, grey, with forced ventilation, 700 x 500 mm
DIMENSIONS
Dimensions product depth 617 mm
Dimensions product width 846 mm
Dimensions ordered width 700 mm
Dimensions opening width 585 mm
Dimensions opening height 404 mm
Net weight 8,2 kg
Standard mount. material thickness 1 min 30 mm
Standard mount. material thickness 1 max 34 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 29 mm
Cut out width 500.00 mm
ADDITIONAL
Opening angle max 60.00 °
Certificates eMark
LOGISTICS
Dimensions parcel depth 700 mm
Dimensions parcel height 230 mm
Dimensions parcel width 910 mm
Parcel weight 10.80 kg
