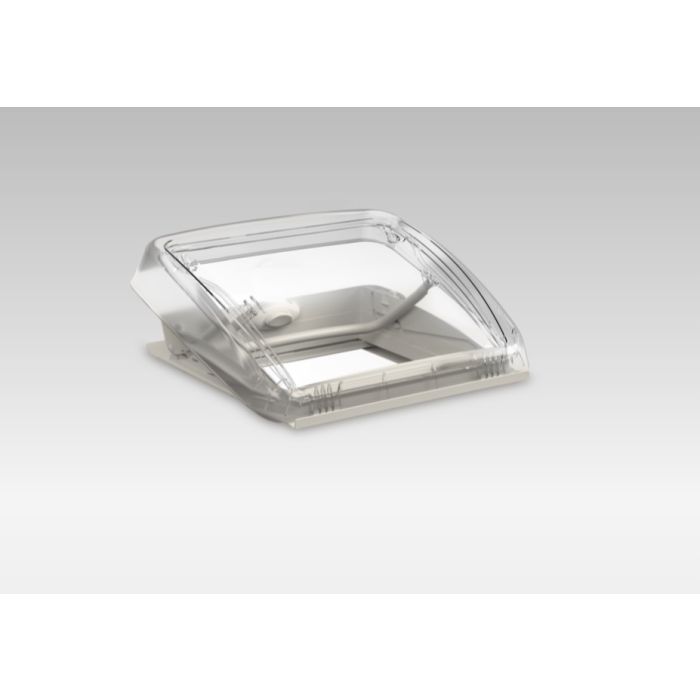

Dometic Seitz Mini Heki Style 25-42mm With Vent Suitable For Caravans/Motorhomes

ROOF WINDOW WITH FORCED VENTILATION, ROOF THICKNESS 25–42 MM


Every vehicle instantly seems so much more inviting when equipped with this compact roof light, which admits just the right amount of light into the interior. Opens to three positions: fully open, half-open and bad-weather position

Opens to three positions: fully open, half-open and bad-weather position
Dome with double acrylic glazing
Special shaped glass dome is aerodynamic
Handle-operated
Without or without forced ventilation
400 x 400 mm

REACH FOR THE SKY
This handle-operated, double acrylic glazed Mini Heki Style roof light for motorhomes and caravans fits neatly into a standard 400 x 400 mm aperture. An inner frame holds a darkening blind and fly screen (separately adjustable) for shade, privacy and freedom from insects! Operated by a hand-lever, the dome can be opened to three different positions: fully open, half-open and bad-weather position. The Mini Heki Style is suitable for roof thicknesses from 25 - 42 or 43 - 60 mm and is available with or without forced ventilation.

DIMENSIONS
Dimensions product depth 520 mm
Dimensions product width 535 mm
Dimensions ordered width 400 mm
Dimensions ordered height 400 mm
Dimensions opening width 380 mm
Dimensions opening height 370 mm
Net weight 3.30 kg
Standard mount. material thickness 1 min 42 mm
Possible material thickness 1 min 25 mm
Possible material thickness 1 max 41 mm
Ventilation opening 80.00 cm2
Cut out height 400.00 mm
Cut out width 400.00 mm

ADDITIONAL
Opening angle max 50.00 °
Positions fixed 3
Certificates eMark
