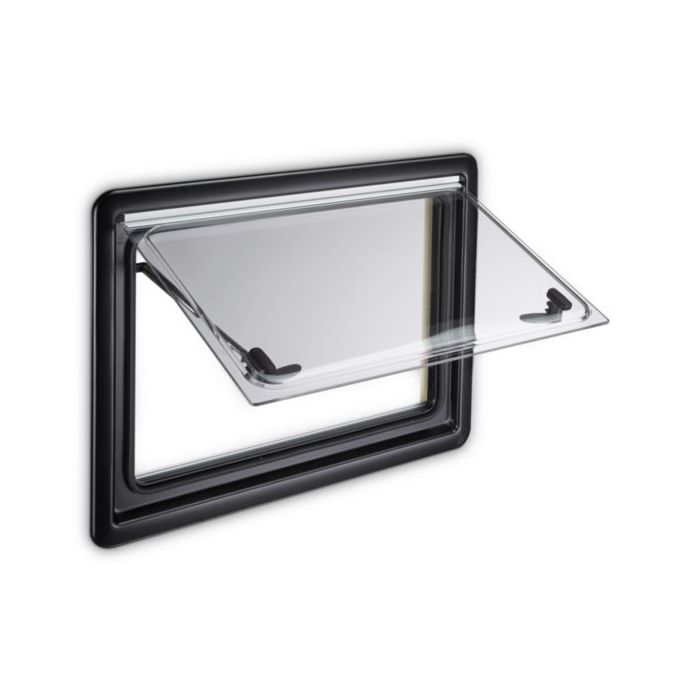

Dometic S4
Top-hung and sliding hinged windows
Looking for a top-quality, attractive window to enhance the side of your motorhome or caravan? This model boasts superb workmanship, materials, and operating convenience.

Order size height
550
Order size width
1100
Hinge Type
Top-hung
Features
Specifications
Documents
THE COMPLETE VIEW
Tried and tested millions of times, S4 windows are the perfect choice for your motorhome or caravan. Friction hinges enable smooth opening to any position, while the security locking system prevents the windows from being opened from the outside. The superb insulation achieved by the double acrylic glazed window pane and its polyurethane frame matches the construction standards of homes! The fly screen and darkening blind, which can be conveniently clipped together for simultaneous adjustment with one hand, make privacy and an insect-free interior easy to achieve.
The complete view
Opens to any position
OPENS TO ANY POSITION
Stepless permits flexible opening

Dometic RV Awning Window
Dometic S4
...AND MORE
Double acrylic glazing and polyurethane frame for excellent insulation
Built-in aluminium-coated darkening blind
Practical fly screen keeps insects out
Quick and easy installation
Friction hinges allow opening to any position (top-hung version)
A FEELING WE ALL SHARE
We know that magic feeling of looking out the window and seeing a new view from your motorhome window. For many people it's the very reason why they invested in a motorhome, to explore and savour Earth's beautiful nature from their very own rolling home. It fills us with great pride to think of the millions of customers looking out of our windows, each feeling that sense of freedom and happiness. Our S4 windows are perfect for the job too: with flexible opening positions, strong insulation, a darkening blind for privacy and a fly screen to keep out unwanted six-legged guests!

A feeling we all share
ALL YOU NEED IN A NEW WINDOW
A tried and tested success! The Dometic S4 sliding or top-hung hinged window boasts a built-in aluminium-coated darkening blind and a fly screen. A secure locking system prevents it from being opened from the outside. Its fly screen and darkening blind offer users both privacy and freedom from insects! Double acrylic glazing of the window pane and a robust polyurethane frame ensure excellent insulation. Stepless stays allow flexible opening to any position (top-hung version).

SPECIFICATIONS
General
SKU number 9104115579
Model S4 Windows
Model on label S4 Windows
Scope of delivery S4 Window with manual in box
Product Description Top-hung and sliding hinged windows
Dimensions
Dimensions product height 581 mm
Dimensions product width 1148 mm
Dimensions ordered width 1100 mm
Dimensions ordered height 550 mm
Net weight 10.10 kg
Dimensions opening width 1004 mm
Dimensions opening height 404 mm
Standard mount. material thickness 1 min 26 mm
Standard mount. material thickness 1 max 26 mm
Possible material thickness 1 min 27 mm
Possible material thickness 1 max 41 mm
Cut out height 549.00 mm
Cut out width 1102.00 mm
Additional
Hinge type Top-hung
Positions variable Variable
Certificates eMark
Logistics
EAN-13 4015704233179
Dimensions parcel depth 660 mm
Dimensions parcel height 185 mm
Dimensions parcel width 1220 mm
Parcel weight 12.40 kg
