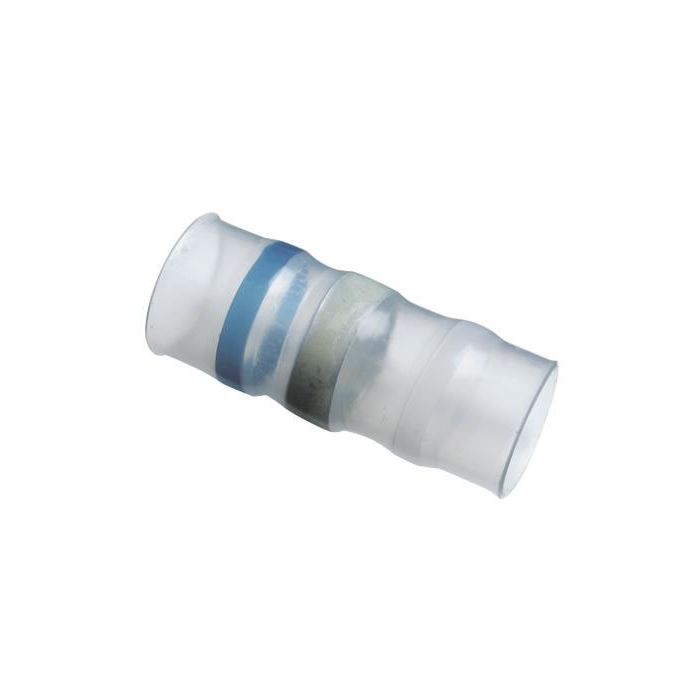

10.7mm Solder Sleeves Tyco Electronics SolderSleeve Shield Terminators Top quality for the professional.

Tyco Connectivity 's SolderSleeve Shield Terminators have a transparent insulation sleeve that provides encapsulation, inspectability, strain relief, and insulation. In addition, TE 's SolderSleeve Shield Terminators feature preflux solder preform that provides a controlled soldering process, one-piece design for easy installation and lower installation costs, and optional preinstalled ground leads for convenience and ease of installation. These terminators are used for shield-to-ground termination.

FEATURES:
Transparent insulation sleeve
Prefluxed solder preform
One-piece design

CWT Environment-resistant Shield Termination

The TE Connectivity CWT SolderSleeves are polyolefin solder sleeves designed to provide environment-resistant shield termination. Designed for termination of a wire to the lead of electrical component or to the terminal of a connector, the TE Connectivity CWT SolderSleeves have an operating temperature range of -55ºC to 125ºC , transparent heat-shrinkable insulation sleeve, and radiation cross-linked modified polyolefin mutable rings. When installed with approved convection and infrared heating tools meet SAE AS83519 the performance requirements.

Materials
1. INSULATION SLEEVE: Heat-shrinkable, transparent clear, radiation cross-linked modified polyolefin.
2. SOLDER PREFORM WITH FLUX:

SOLDER: TYPE Cd18 per ANSI / J-STD-006.
