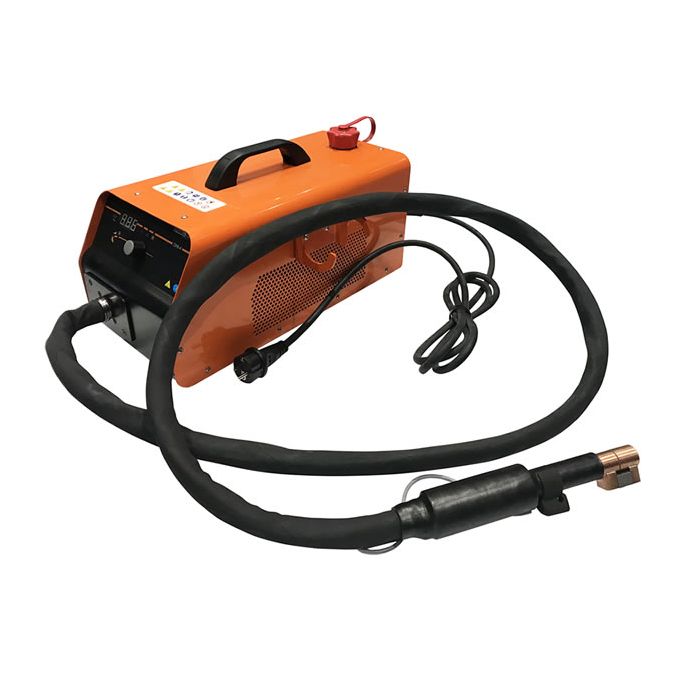

Water Cooled Induction Heater 3.5kW 230v
£2,618.00
£3,141.60
Code :
DHI0044
ea (Each)
Hassle Free Returns
Water Cooled 3.5kw Induction Heater c/w 1 Side Coil
* See Images and Downloads for the wide range of optional coils available
This mobile workshop induction heater with integrated water cooling for the induction heater and replaceable induction coil extenders. The unit has a 2 metre burner with a side (focusing) coil. Other induction coil types are designed as additional accessories and are intended for various types of heating of ferromagnetic and conductive materials. Focusing coils are intended to heat materials by application.
Its high power capacity, small dimensions and light weight make it ideal for garages, workshops, car repair shops, general repairs, production, maintenance. A significant advantage of this unit compared to other heating methods is its safety, simplicity and high speed of heating and application, particularly compared to flame heating. Plus the use of this machine is a clean and environmentally friendly compared to using Oxycetylene Gas.
Other advantages include:
* Higher security and better working conditions for operators. The operator is not exposed to open flame, hot gases and the risk of fire and explosion when using a flame.
* Lower personnel training costs, lower wage costs. There is no need for regular staff to work on autogenous and PB burners.
* Low operating costs and low cost of consumables. No gas costs. Low power consumption. Energy-efficient heating system.
* Mobility – weight only 13.5 kg, including water cooling, small dimensions – size of a small welding machine.
* Output 3.5 kVA, respectively, high loading factor.
* Easy use – burner length 2 m.
* Flexibility and ease of use – connects anywhere, power supply 1x 230 V, easy and quick preparation.
* Versatile uses of pre-heating – for shaped, flat, circular, positioned or standard components.
* Modern and affordable method of workshop heating.
Applications:
Automotive, railway and shipbuilding industry, production, mechanical, servicing workshops, repair shops, assembly plants, heating and plumbing, home workshops, etc.
Production, repair, renovation, maintenance.
Workshops requiring heating of bolts, round steel, sections, sheets, bearings, bushes, drive shafts, hinges, nuts, pipes, cogwheels, bearing mountings, shafts, lambda probes, parts
and components of machines and cars, exhaust systems, belt pulleys, sleeves, etc.
Heating tools and parts for hardening, gluing, soldering.
Defrosting.
Same applications as gas and oxy acetylene burners.
Technical data
Power supply requirements 230 Volt (180-265)
Frequency 50/60 Hz
Consumption 16 Amp
Protective system IP22
Working frequency 18-60 Hz
Output control (CP mode) % 10-100% of Pmax, fluent
Induction burner length 2 metres
Input power 3.5 kW
Output induction power 3.5 kVA
Power factor for 100% output 1
Dimensions (LxHxW) 440mm x 200mm x 240mm
Weight 13.5 kg
Coolant capacity 2.5 Litres
* See Images and Downloads for the wide range of optional coils available
This mobile workshop induction heater with integrated water cooling for the induction heater and replaceable induction coil extenders. The unit has a 2 metre burner with a side (focusing) coil. Other induction coil types are designed as additional accessories and are intended for various types of heating of ferromagnetic and conductive materials. Focusing coils are intended to heat materials by application.
Its high power capacity, small dimensions and light weight make it ideal for garages, workshops, car repair shops, general repairs, production, maintenance. A significant advantage of this unit compared to other heating methods is its safety, simplicity and high speed of heating and application, particularly compared to flame heating. Plus the use of this machine is a clean and environmentally friendly compared to using Oxycetylene Gas.
Other advantages include:
* Higher security and better working conditions for operators. The operator is not exposed to open flame, hot gases and the risk of fire and explosion when using a flame.
* Lower personnel training costs, lower wage costs. There is no need for regular staff to work on autogenous and PB burners.
* Low operating costs and low cost of consumables. No gas costs. Low power consumption. Energy-efficient heating system.
* Mobility – weight only 13.5 kg, including water cooling, small dimensions – size of a small welding machine.
* Output 3.5 kVA, respectively, high loading factor.
* Easy use – burner length 2 m.
* Flexibility and ease of use – connects anywhere, power supply 1x 230 V, easy and quick preparation.
* Versatile uses of pre-heating – for shaped, flat, circular, positioned or standard components.
* Modern and affordable method of workshop heating.
Applications:
Automotive, railway and shipbuilding industry, production, mechanical, servicing workshops, repair shops, assembly plants, heating and plumbing, home workshops, etc.
Production, repair, renovation, maintenance.
Workshops requiring heating of bolts, round steel, sections, sheets, bearings, bushes, drive shafts, hinges, nuts, pipes, cogwheels, bearing mountings, shafts, lambda probes, parts
and components of machines and cars, exhaust systems, belt pulleys, sleeves, etc.
Heating tools and parts for hardening, gluing, soldering.
Defrosting.
Same applications as gas and oxy acetylene burners.
Technical data
Power supply requirements 230 Volt (180-265)
Frequency 50/60 Hz
Consumption 16 Amp
Protective system IP22
Working frequency 18-60 Hz
Output control (CP mode) % 10-100% of Pmax, fluent
Induction burner length 2 metres
Input power 3.5 kW
Output induction power 3.5 kVA
Power factor for 100% output 1
Dimensions (LxHxW) 440mm x 200mm x 240mm
Weight 13.5 kg
Coolant capacity 2.5 Litres
| Weight | 13.50 |
|---|
